Product Description
TrueGrid Porous Ground Paving Grid — The Professional's Choice for Ground Reinforcement
Whether you're creating a stable base for a garden shed, reinforcing a grass car park, or building a permeable driveway, TrueGrid delivers a tough, long-lasting solution that installs in a fraction of the time of traditional paving. Made from 100% recycled material, it's the sustainable choice that doesn't compromise on strength.
📐 Specifications
| Property | Detail |
|---|---|
| Grid Dimensions | 468mm × 468mm × 40mm (approx.) |
| Weight per Grid | 0.99 kg |
| Coverage | 4 grids = approx. 1 m² (936mm × 936mm) |
| Load Bearing | Up to 14 tonnes axle load (on suitable base) |
| Compressive Strength | Up to 400 t/m² |
| Material | 100% recycled plastic |
| Colour | Black |

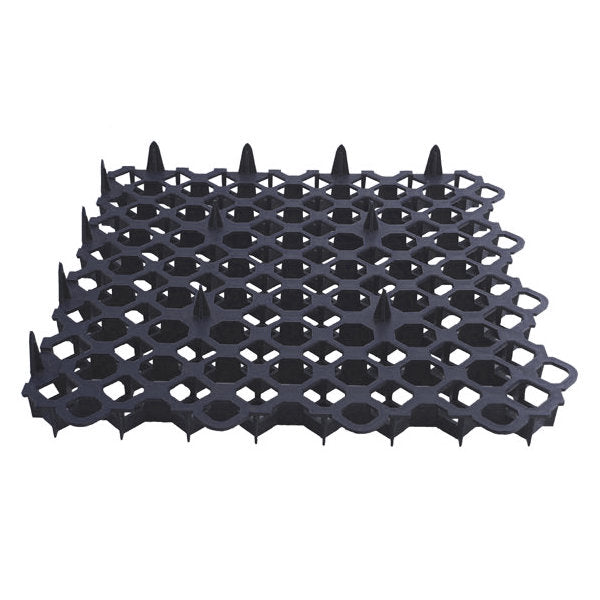

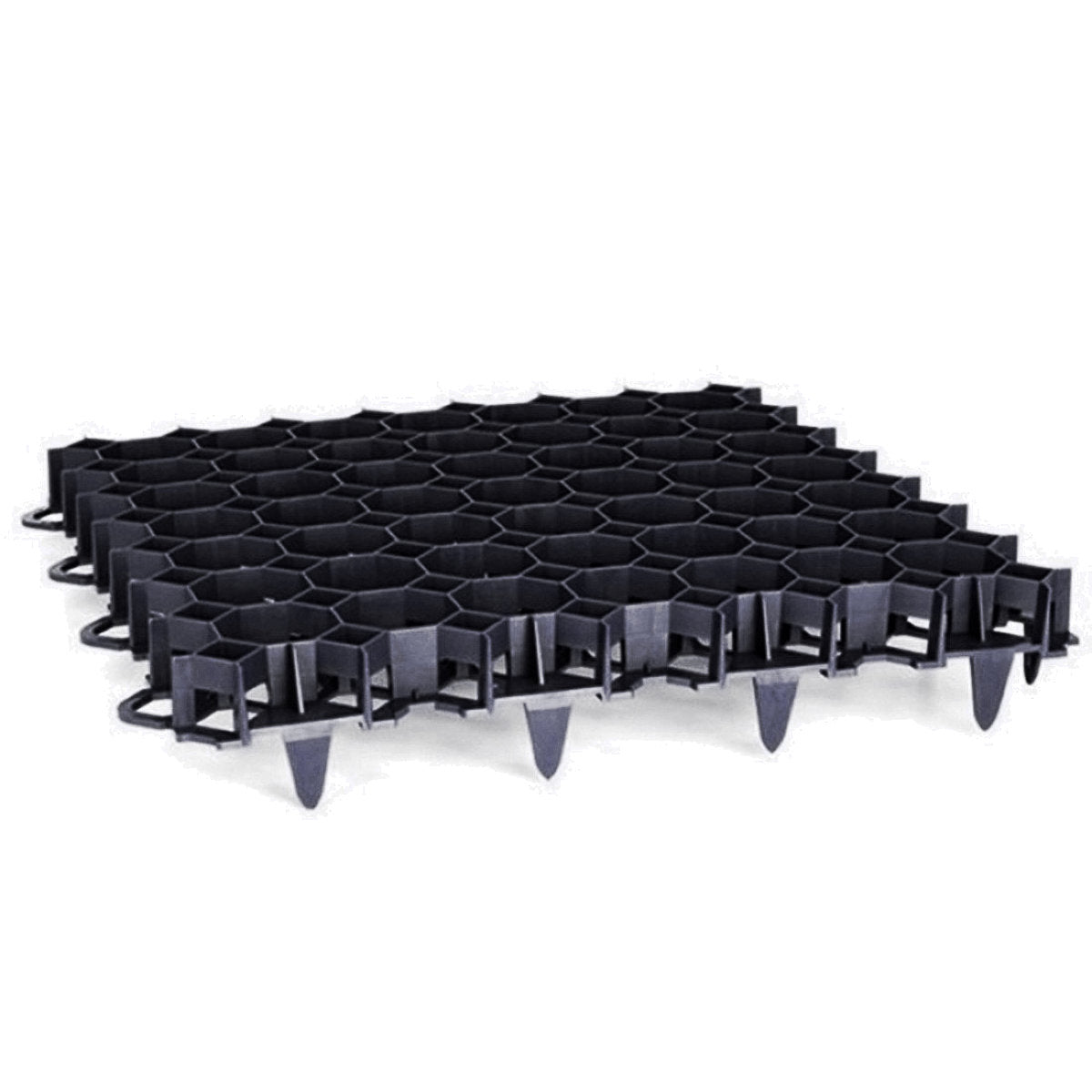

| Ground Spikes | 35mm spikes resist lateral movement |
| Installation Speed | Up to 100 m² per person per hour |
| Drainage | Fully porous — SuDS source control compliant |
| Weather Resistance | Frost, UV, and crack resistant |
| Recyclable | 100% |
📏 How Many Grids Do I Need?
Each grid covers approximately 0.22 m², and 4 grids = 1 m². Use these common project examples to estimate your order:
- Garden shed base (2m × 3m = 6 m²): 24 grids
- Small car parking space (2.5m × 5m = 12.5 m²): 50 grids
- Standard driveway (3m × 6m = 18 m²): 72 grids
- Log cabin base (4m × 4m = 16 m²): 64 grids
- Greenhouse soakaway (3m × 3m = 9 m²): 36 grids
Tip: Add 5–10% extra to allow for cutting and edge trimming. Grids can be easily cut with a saw.
Need a larger quantity? See our TrueGrid by sqm and Pallet of 200 options for better value on bigger projects.
✅ Ideal For

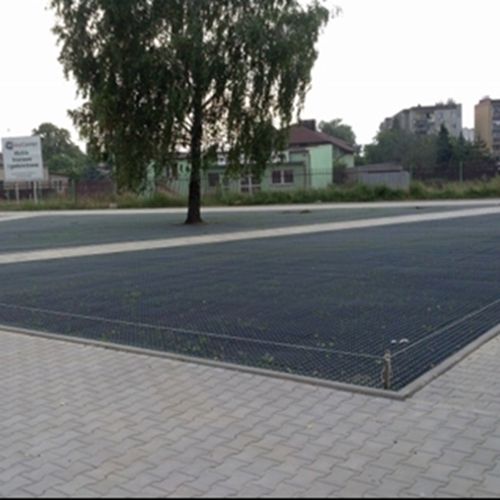

- Grass car parking areas and overflow car parks
- Private driveways and access lanes
- Garden shed, log cabin, and decking bases
- Greenhouse soakaway bases
- Pathways and pedestrian walkways
- Equestrian and livestock areas
- Golf courses and landscaping projects
- Construction site access roads
- River and road embankments

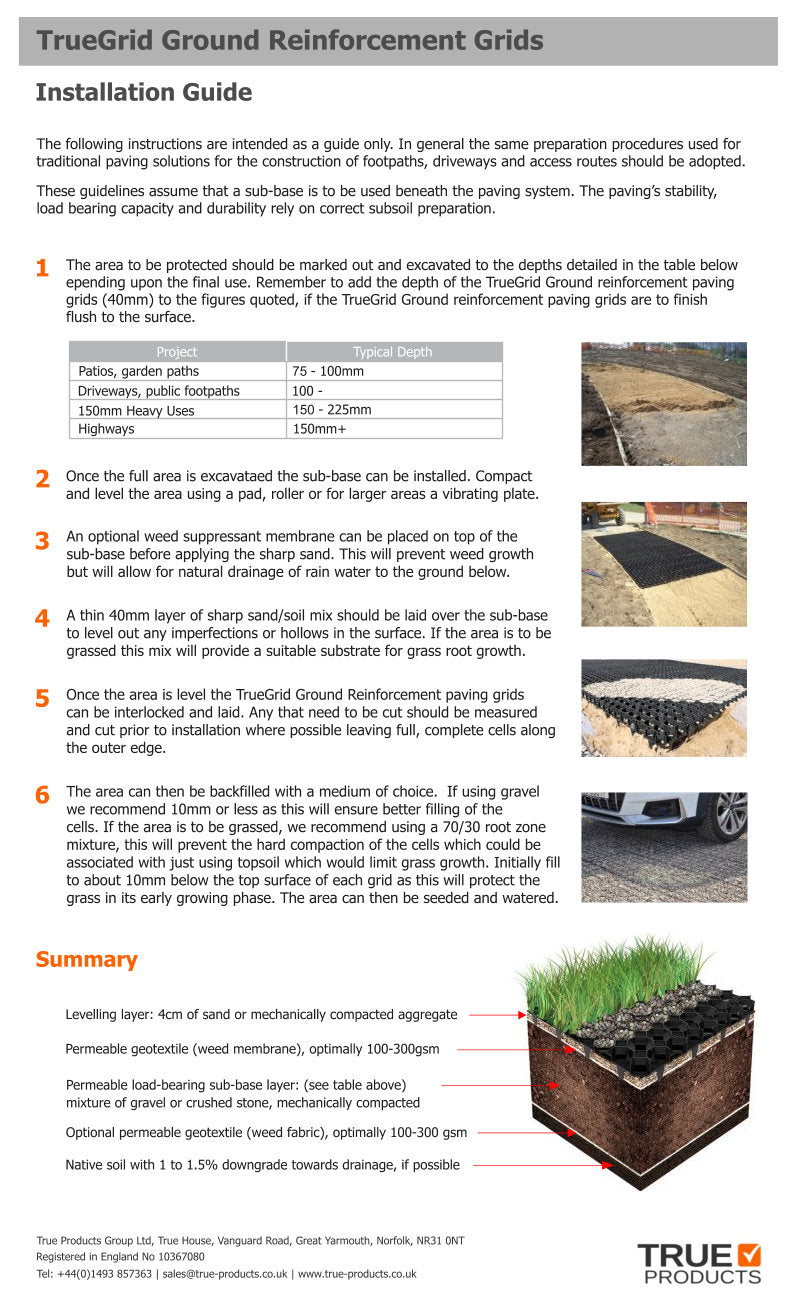

🔧 Installation Guide
- Prepare the base — excavate to 100–150mm depth. Compact the sub-base with MOT Type 1 or similar aggregate.
- Lay weed control fabric — place water-permeable woven weed control fabric over the base to prevent weed growth and stabilise the surface.

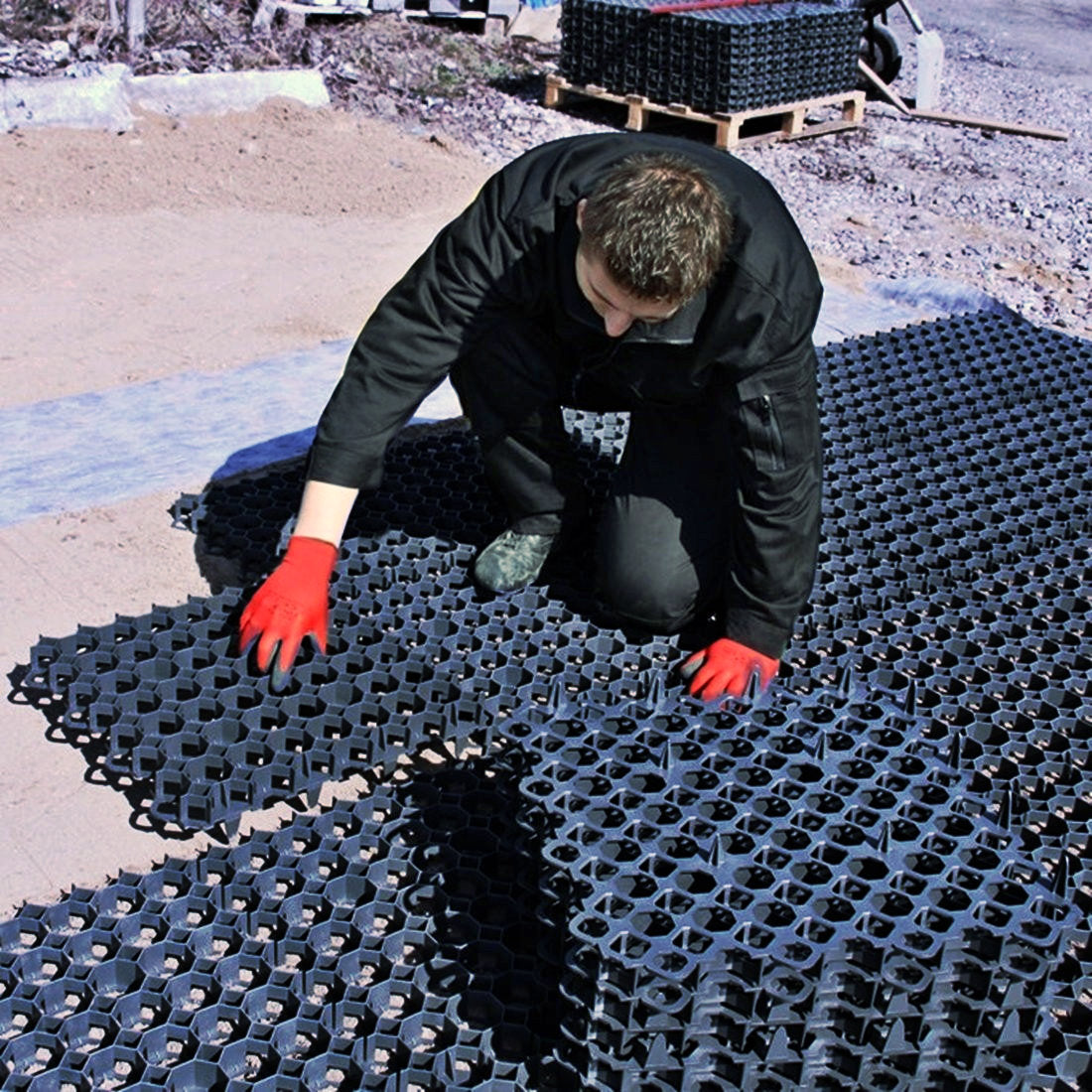

- Click grids together — TrueGrid uses a proven interlocking connection system. Simply click each grid into the next, working row by row.
- Cut to fit edges — use a hand saw or jigsaw to trim grids to fit around borders and obstacles.

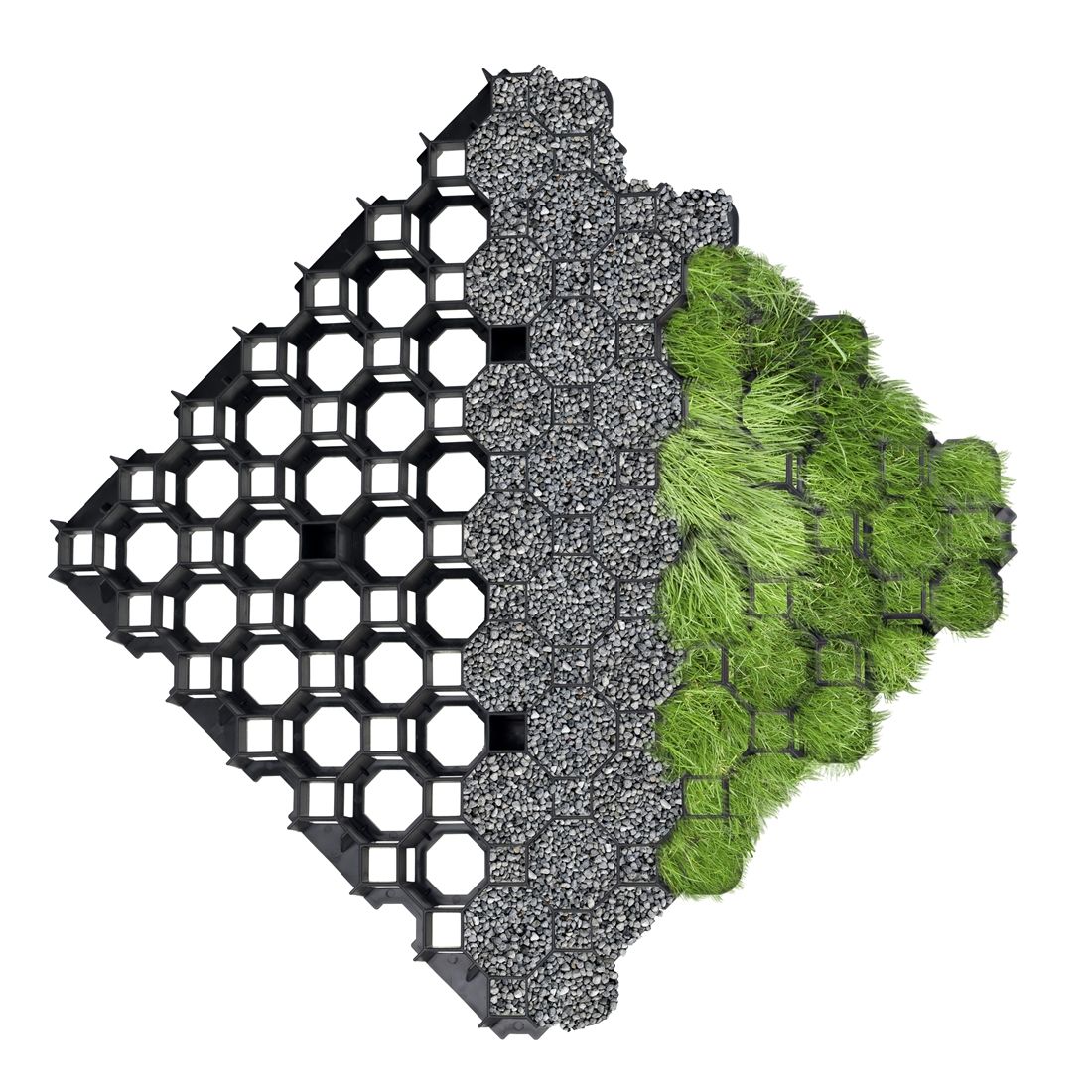

- Fill the cells — fill with your chosen material: grass turf, gravel, pea shingle, soil, or sand depending on your application.
- Compact and finish — lightly compact the fill material and the installation is complete.
For vehicle use, ensure the sub-base is adequately compacted to support the intended load. Consult a groundworks professional for heavy-duty applications.
🌿 Environmentally Friendly
TrueGrid is manufactured entirely from waste plastic diverted from landfill and is 100% recyclable at end of life. Its porous design supports natural drainage and is fully SuDS (Sustainable Drainage Systems) compliant — ideal for planning applications that require permeable surfacing.
